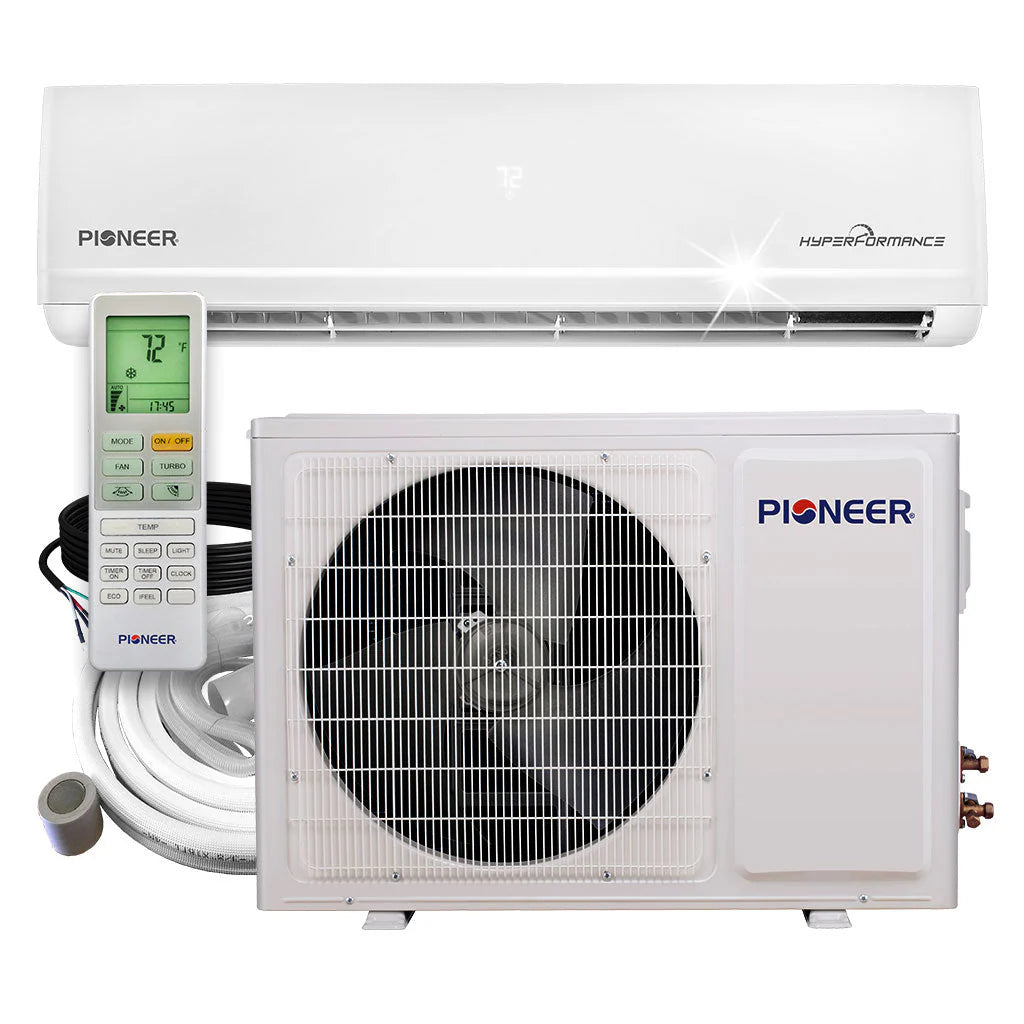

12K BTU Ductless Mini Split Heat Pump Complete System I39629
12K BTU Ductless Mini Split Heat Pump Complete System I39629
Experience unmatched comfort and efficiency with the Pioneer® WYF-25 Hyperformance™ series of ductless mini split heat pumps. These revolutionary systems redefine year-round comfort, providing exceptional heating and cooling performance even in extreme weather conditions as low as -22°F.
Summary
- Ultra Low Ambient Hyperformance™ Ductless Mini Split Hyper Heat Pump System
- Cooling capacity: 12,000 BTU/H (1 Ton) with 23.5 SEER2 / 12.7 EER2 efficiency
- Heating capacity: 12,000 BTU/H (1 Ton) with 9.5 HSPF2 / 3.74 COP efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- High Wall Mounted Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Hyper Heat Unit (Continues heating in -22°F weather)
- Wireless Internet Access Included (Via Free Smartphone App)
Key Features
Energy-Star Certified Efficiency
Save on utility bills with Energy-Star certification and qualify for rebates nationwide.
Heavy Duty Heating in -22°F
Engineered to keep your space warm in extreme cold with up to 88% capacity retention.
Dual-Swing 3D Louver
Ensure optimal airflow distribution with automatic dual-directional louvers.
Dependably Durable Design
Built to withstand harsh climates with galvanized steel panels and anti-corrosion coil.
Wi-Fi Controllable
Control your system remotely with the free app, set custom schedules, and integrate with smart home setups.
High-Density Air Particle Filtration
Improve air quality with ultrafine and supplemental filters, eliminating pollutants and odors.
What's Included
- Indoor Unit
- Outdoor Unit
- Wireless Remote Control (with wall holder and batteries)
- Internet Control Module
- Copper Lines*
- Signal Cable Between Units*
- Drain for Indoor/Outdoor*
- Wall Passage Sleeve*
- Putty for Wall Hole*
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
- (*If ordered with an installation kit)
PRODUCT SPECIFICATIONS:
| Condenser Dimensions | 31 7/8' W x 11' D x 23' H |
| Condenser Weight | 72.6 lbs |
| Air Handler Dimensions |
33 1/2' W x 8 1/8' D x 10 5/8' H |
| Air Handler Weight | 18.7 lbs |
| SEER2 | 23.5 BTU/W.h |
| EER2 | 12.7 BTU/W.h |
| COP 47 |
3.74 / 1.98 W/W |
| HSPF2 | 11 / 9.5 BTU/W.h |
| Cooling Capacity | 12,000BTU (3,000BTU - 14,000BTU) |
| Heating Capacity | 12,000BTU (3,000BTU - 16,000BTU) |
| Cooling Rated Current | 4.3A / 940W |
| Heating Rated Current | 4.3A / 940W |
| Voltage |
Requires a minimum of 208-230V, 60Hz, 1Ph (please check your home meets this electrical requirement prior to purchase) |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Coverage Area | 200-550 sq. ft. |
| Zone Capacity | 1 |
| Refrigerant Type | R-410A |
| Indoor Decibel Rating | 39 / 32 / 29 (Hi/Med/Lo) |
| Indoor Decibel Rating | 53 (High) |
| Inverter | Yes |
| Line Set Length | Choose between 10ft., 16ft., 25ft., 33ft., and 50ft. line set. |
| Maximum Line Set Length | 20m / 65ft |
| Liquid Pipe Diameter | 1/4” |
| Gas Pipe Diameter | 3/8” |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Compatible with | IOS Android |
| Control | Handheld Remote Controller (Included/Default), or Wired Controller (Optional/Sold Separately) |
| Certifications | Energy Star AHRI |
| Warranty | 5 years Warranty for Parts 5 years for Compressor |
